Products Manufactured

Everything is manufactured right here in Melbourne at our workshop in Dandenong. You can count on our master technicians to deliver the best products and service.

Autofrost Refrigeration Units are manufactured using only the best Australian quality products.

We use Heatcraft Worldwide Refrigeration coils which provide outstanding performance in our refrigeration units. The reliabilty of Autofrost units and there ease of service and installation, benefit both customers and dealers. Autofrost provide the best possible temperature solutions for each customer. With units capable of temperatures -25 degrees Celsius in 6 meter Pantech or +4 degree Celsius in a small box, we can provide the correct solution for your application. Electric standby in 240 volt or 415 volt (3 phase) is available for small van and large truck units. Units are available in various sizes to match the requirements of each vehicle and application..

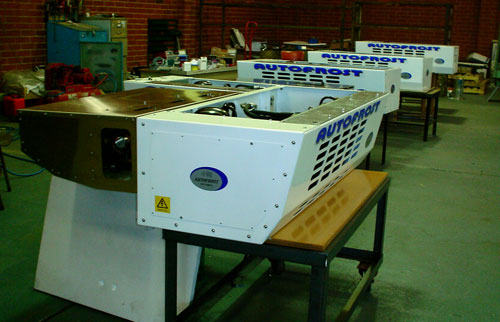

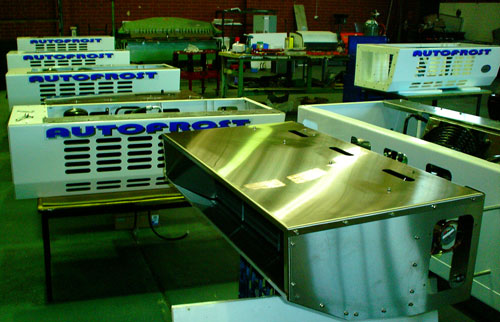

Manufacturing Process


MANUFACTURING SPECIFICATIONS

Range of Units

Range of Units

LED CONTROL SYSTEM:
Automatic & Manual Defrost
Digital Display - Temperature - Set Point -
Return Air
Data Configuration Parameters - Alarms
SAFETY DEVICES:
Emergency Switch Management
Low and High Refrigerant Pressure Protection.
STANDARD FEATURES:
304 Grade Stainless Steel
Evaporator & Control box
Brushless Fans. OED and ESB
Operation on 12VDC or 24VDC
ELECTRICAL FEATURES:
Remote Plug OED and ESB
240VAC or 415VAC option

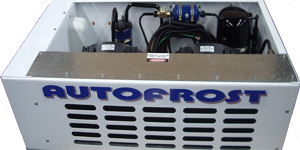

Condensers

Condenser cases are made from galvanized powder coated steel. The condenser coils are of 'rifle bore' copper tube with high efficiency design and aluminum fins. The condenser is fan forced using high performance, long life, reliable fans, such as EBM brushless fans, Spel fans and Davies Craig fans.

Off Engine Drive Truck Units

Unit
Model
Temp.
BTU
0 to 35 C AmbientTemperature
Air flow
m3/h
24 volt
Current
drawn
Refrigrant
Weight Kg
AVS 01
+4C
3.5 KW
1450
18.3
R 134A
66.9
AVS 02
-10C
1.6 KW
1450
18.3
R 404A
68.9
AVS 03
-18C
1.5 KW
1850
18.3
R 404A
68.9
AVS 04
-20C
1.5 KW
1850
18.3
R 404A
68.9
AVS 05
-25C
1.5 KW
1850
18.3
R 404A
68.9
AVL 06
+4C
5.0 KW
1450
18.5
R 134A
76.1
AVL 07
-10C
1.6 KW
2400
18.5
R 404A
77.5
AVL 08
-18C
2.4 KW
2400
21.3
R 404A
77.5
AVL 09
-20C
2.4 KW
2400
21.3
R 404A
77.5
AVL 10
-25C
2.4 KW
2400
21.3
R 404A
77.5
AVL 11
+4C
6.4 KW
3600
19
R 134A
102.1
AVL 12
-10C
6.4 KW
3600
19
R 404A
102.1
AVL 16
+4C
6.4 KW
2400
19
R 134A
76.1
AVL 18
+4C
6.4 KW
3600
19
R 134A
174.1

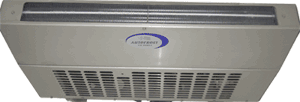

Evaporators

Evaporator cases are constructed from 304 grade brushed stainless steel. The coil is of 'rifle bore' copper with aluminum fins. The evaporators are fan forced using high performance fans such as EBM fans, Spel fans, and Davies Craig fans. These are long life and reliable. We have a variety of Evaporators such as the Single fan, Double fan, Three fan and Slim line.
Evaporator
Ref.
Temp.
BTU
kw
Unit no.
Single fan evaporator
R 134 a
0 Degrees
10200
3.0
AFV 01
Single fan evaporator
R 404 a
-18 to -20
4200
1.3
AFV 02
Single fan evaporator
R 134 a
0 Degrees
17000
5.0
AFV 04
Twin fan evaporator
R 404 a
-18 to -20
8200
1.6
AFV 06
Twin fan evaporator
R 134 a
0 Degrees
22000
6.5
AFV 08
Three fan evaporator
R 404 a
-18 to -20
9600
3.0
AFV 12
Three  fan evaporator ESB
R 404 a
-18 to -20
9600
3.0
AFV 20

Controllers

Autofrost Refrigeration Units come with automatic programmable, Italian made, reliable, Lae controls. Hot gas defrost settings are set to customer’s individual requirements. The system is controlled by a sophisticated microprocessor and has a digital display unit.
